1.54'' Industrial Square 240*240 TFT LCD With ST7789V IC 4-line SPI

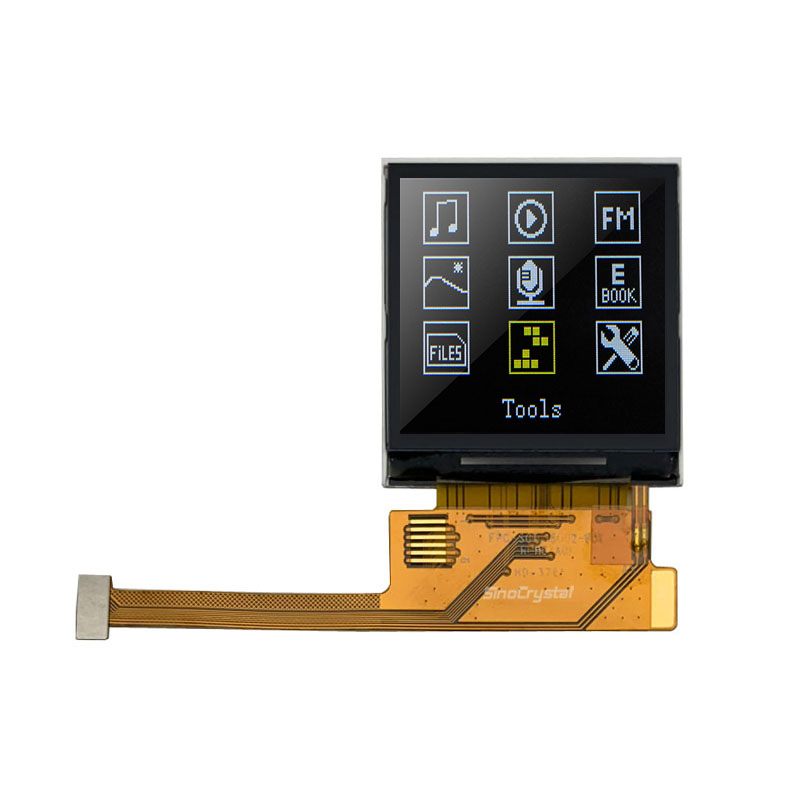

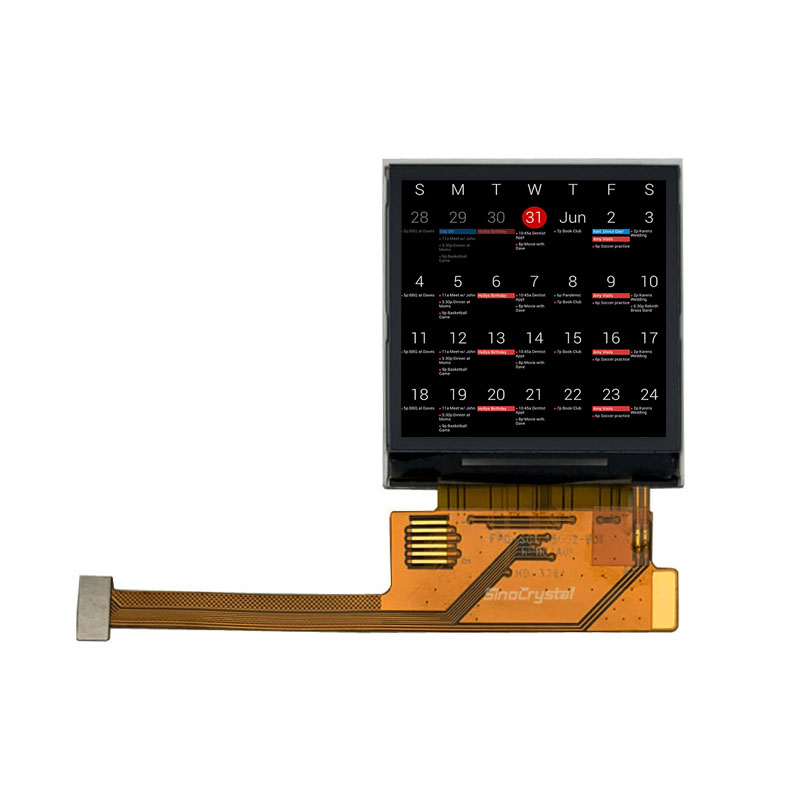

SCT015002-V02 is a 1.54'' IPS TFT LCD Display with 240RGB*240, it built in with ST7789V IC, and it supports 4-line SPI interface, 24 PIN.

  • Type: TFT
  • Mode: IPS
  • Product No: SCT015002-V02
  • Size: 1.54''
  • Resolution: 240*240
  • Outline Dimension: 31.52*33.72*1.73
  • Active Area: 27.72*27.72
  • Interface: 4-line SPI
  • IC: ST7789V
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: IPS
  • Pin No: 24
  • Shape: Squre
Inquiry Now

Introduction:

tft lcd display drawing

General Specification



ItemStandard valueUnit
LCD Size1.54inch
Dot Matrix240(RGB) × 240pixel
Module Size31.52 × 33.72 × 1.73mm
Active Area27.72 × 27.72mm
Dot Pitch0.1155 × 0. 1155mm
Pixel ConfigurationR.G.B. Stripe
Color depth262K
Display ModeNormally Black, Transmissive
Technology Typea-Si
Viewing DirectionAll
Gray Scale Inversion DirectionAll
Driver ICST7789V2
Interface4-line SPI
LED Numbers3 LEDs
WeightTBDg



 Interface Definition



Pin No.SymbolTypeDescription
1GNDPGround
2CSIChip Select signal
3DCIDisplay data/command selection pin in 4-line serial interface
4SDAI/OSerial data input/output pin
5SCLISerial clock pin
6RESETIReset signal
7TEOTearing effect output pin
8LEDAPLED driving anode
9LEDKPLED driving cathode
10GNDPGround
11NCNo connection
12NCNo connection
13NCNo connection
14NCNo connection
15GNDPGround
16VDDIPPower supply for I/O system
17VCCPPower supply for analog
18GNDPGround
19NCNo connection
20NCNo connection
21NCNo connection
22NCNo connection
23NCNo connection
24GNDPGround
