TFT LCD, TFT Display, TFT LCD Display

Sinocrystal is a professional TFT LCD Display Manufacturer.  TFT displays are liquid crystal display modules with thin-film transistor technology. This TFT technology offers full RGB showcasing a range of colors and hues. Get rich colors, detailed images, and bright graphics from an LCD with a TFT screen.


 The TFT displays are included TFT LCD displays, TFT Display with resistive or Capacity touch screen and TFT display with driving board, Higher brightness TFT LCD Modules or wider viewing angle TFT display modules, Monochrome TFT and Bar Type TFT display modules. We can offer customization in backlight or FPC service as well. We have standard or customized displays with 0.96″, 1.8″, 2″, 2.4″, 2.8″, 3.5″, 4″, 4.3″, 5″, 5.5″, 7″, 8″, 9″ and 10.1″ etc. We also provide custom service for our displays, contact us to learn more.

Type Mode Product No. Size Picture Resolution Outline Dimension Active Area Interface IC Brightness Touch Screen View Direction Pin No. Shape
TFT IPS SCT009003-V01 0.96'' SCT009003-V01 80*160 27.95*13.54*1.85 21.7*10.8 SPI ST7735S 300cd/m2 No IPS 10 Rectangle
TFT IPS SCT009004-V01 0.96'' 240*198 27.40*27.00*1.46 24.408*20.137 1 Lane 4SPI /8080 mode GC9307 300cd/m2 No IPS 24 Round
TFT IPS SCT013003-V01 1.3'' 240*240 33.13*37.08*3.38 23.4*23.4 SPI ST7789V 300cd/m2 CTP IPS 16 Squre
TFT IPS SCT015002-V02 1.54'' 240*240 31.52*33.72*1.73 27.72*27.72 4-line SPI ST7789V 300cd/m2 No IPS 24 Squre
TFT TN SCT018001-V01 1.8' 128*160 34.00*45.83*2.75 28.032*35.040 8bit MCU ST7735S 300cd/m2 No 12 20 Rectangle
TFT TN SCT018001-V02 1.8'' 128*160 34.00*45.83*2.60 28.032*35.040 8bit MCU ST7735S 350cd/m2 No 12 20 Rectangle
TFT TN SCT018003-V01 1.8'' 128*160 34.00*45.83*2.60 28.032*35.040 8bit MCU ST7735S 300cd/m2 No 12 20 Rectangle

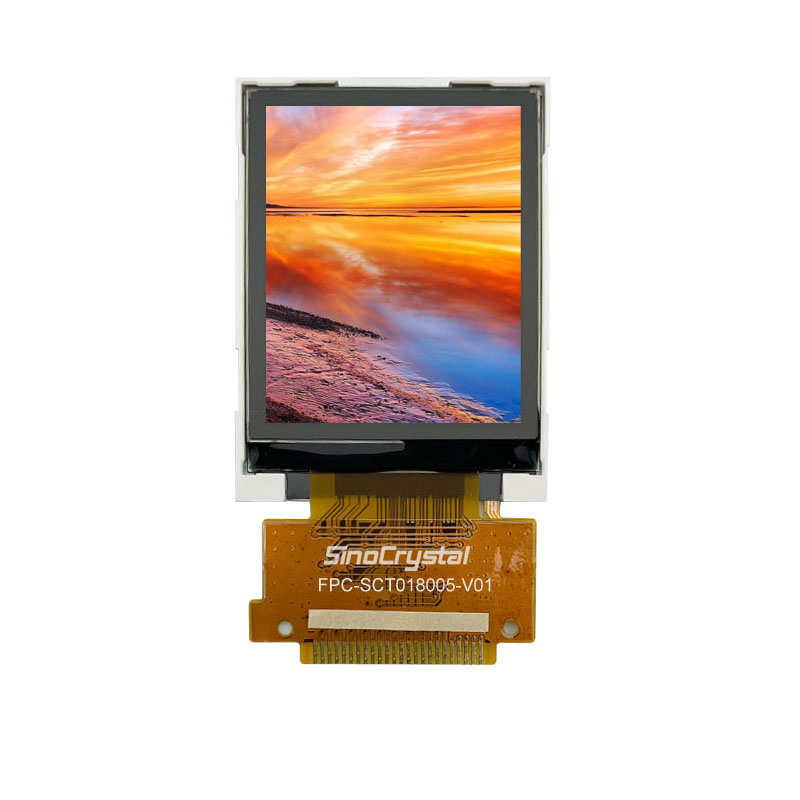

TFT TN SCT018005-V01 1.8' 128*160 34.00*45.83*2.75 28.032*35.040 8bit MCU ILI9163V 300cd/m2 No 12 24 Rectangle
TFT TN SCT018013-V01 1.8'' 128*160 34.00*45.83*2.60 28.032*35.040 SPI ST7735S 300cd/m2 No 12 10 Rectangle
TFT TN SCT020007-V02 2.0'' 176*220 37.68*51.30*2.23 35.30*46.45 8bit MCU ST7775R 300cd/m2 No 6 20 Rectangle
