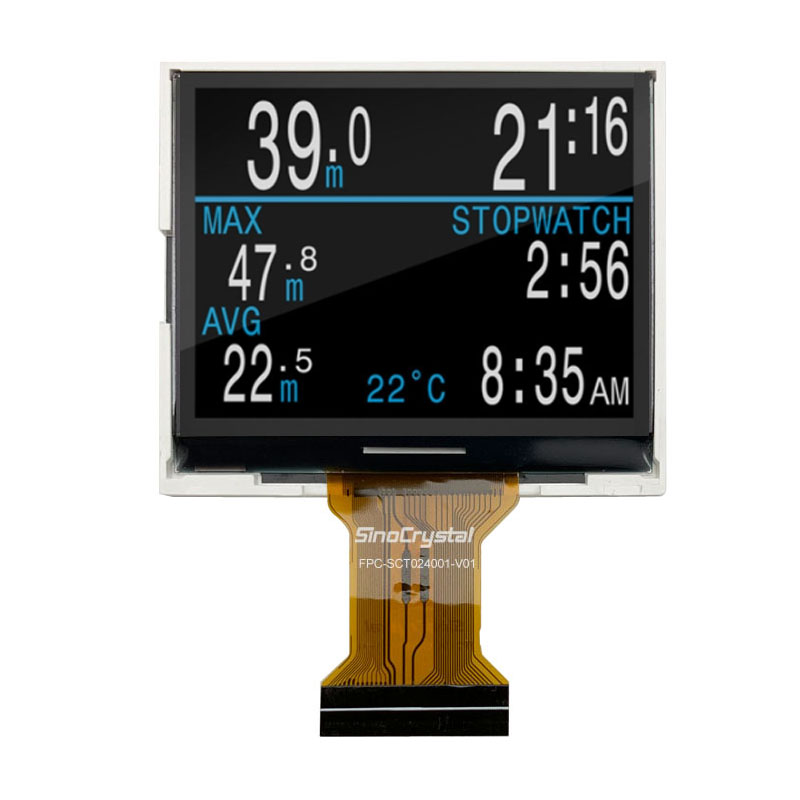

General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 480 x 234 | Dots |
| Module Size ( W×H×T ) | 55.2 x 47.55 x 2.8 | mm. |
| Active Area ( W×H ) | 48.0 x 35.685 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 8 bit RGB | – |
| Driving IC Package | COG | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | – |
| LCD Mode | TN/Normal White | – |
| Backlight Type | LED x 2 | PCS |
Interface Definition
| Pin No | Pin Symbol | Level | Description |
| 1~8 | D0-D7 | H/L | Data input |
| 9 | DCLK | H/L | Data clock |
| 10 | VSYNC | H/L | Frame synchronizing |
| 11 | HSYNC | H/L | Line synchronizing |
| 12 | SCL | H/L | Serial clock input |
| 13 | SDA | H/L | Serial data input |
| 14 | CSB | H/L | Serial chip select, Low enable |
| 15 | VDDIO | – | Power supply for logic(1.8V-3.6V) |
| 16 | AGND | – | Power ground |
| 17 | NC | ||
| 18 | FB | – | Main boost regulator feedback input |
| 19 | NC | ||
| 20 | LEDA | – | Supply voltage for LED backlight |
| 21 | DRV | – | Gate signal for the power transistor of the boost converter |
| 22 | VDD | – | Power supply for analog(1.8V-3.6V) |
| 23 | GND | – | Power ground |
| 24 | C1N | – | Pins to connect capacitors for power circuitry |
| 25 | C1P | – | Pins to connect capacitors for power circuitry |
| 26 | NC | ||
| 27 | C2N | – | Pins to connect capacitors for power circuitry |
| 28 | C2P | – | Pins to connect capacitors for power circuitry |
| 29 | VDD3 | – | Intermediate voltage for charge pump |
| 30 | C3N | – | Pins to connect capacitors for power circuitry |
| 31 | C3P | – | Pins to connect capacitors for power circuitry |
| 32 | VDD_25V | – |
