2.4 inch 240*320 MCU interface display screen tft IPS lcd module

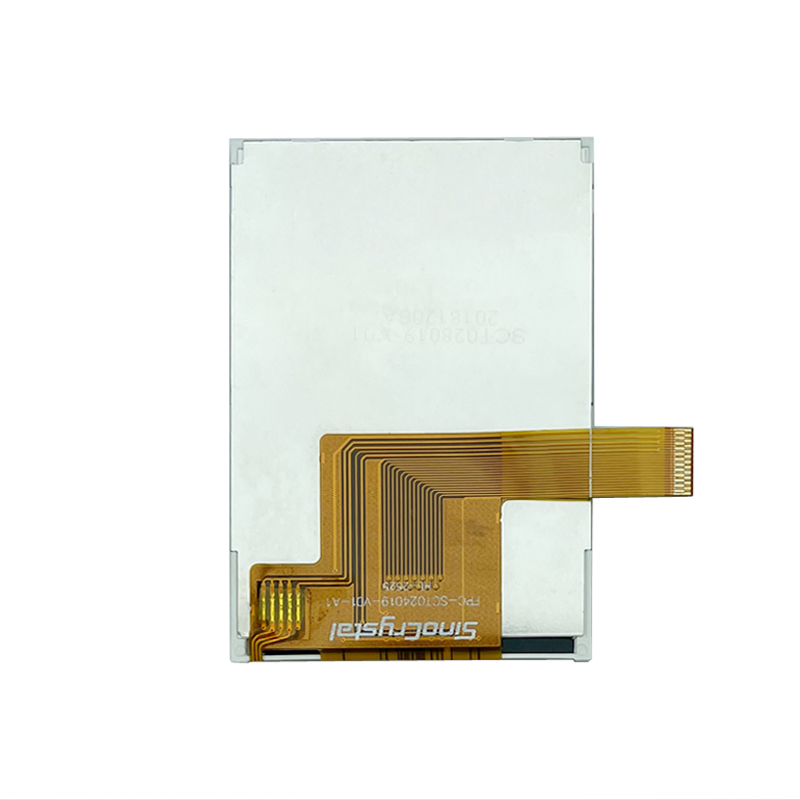

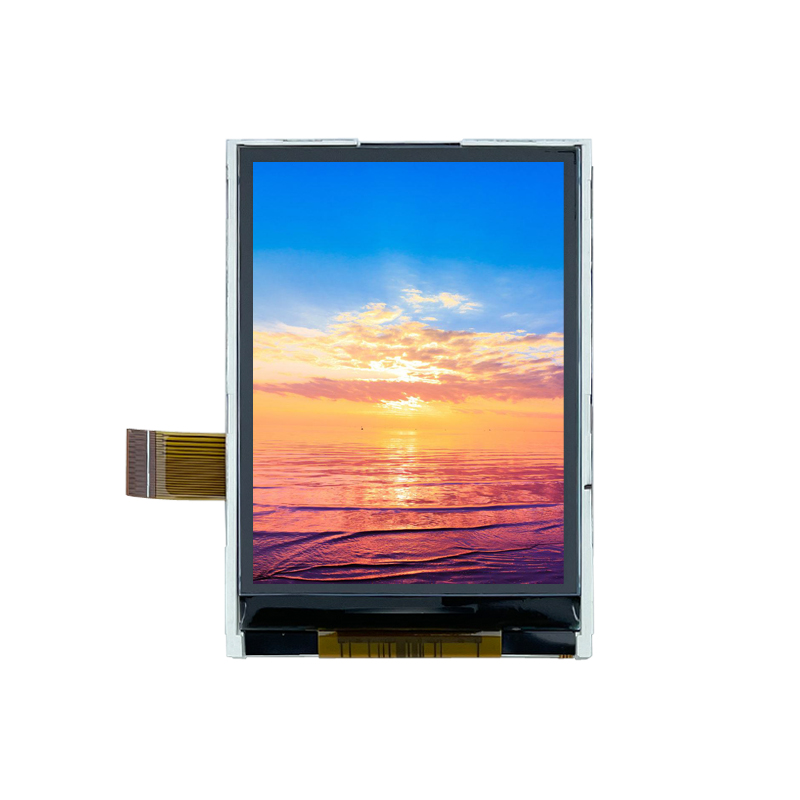

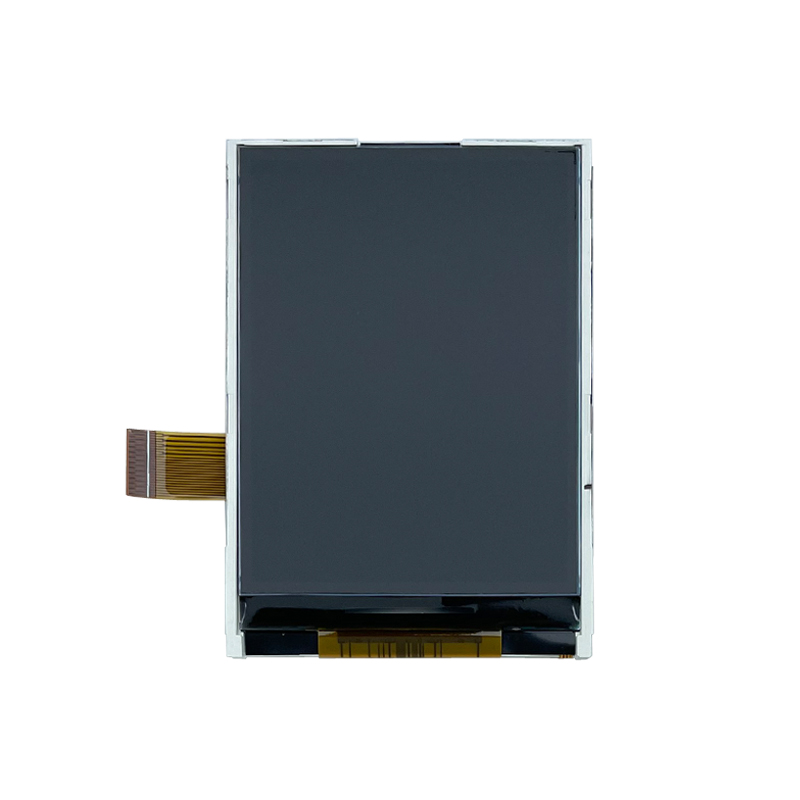

SCT024019-V02 is a 2.4” IPS TFT LCD Display with 240RGB*320 resolution, it built in with ST7789V IC, and it supports 8 bit MCU interface, 25 PIN, Full View direction.

  • Type: TFT
  • Mode: IPS
  • Product No: SCT024019-V02
  • Size: 2.4''
  • Resolution: 240*320
  • Outline Dimension: 42.72*60.26*2.45
  • Active Area: 36.72*48.96
  • Interface: 8bit MCU
  • IC: ST7789V
  • Brightness: 350cd/m2
  • Touch Screen: No
  • View Direction: IPS
  • Pin No: 25
  • Shape: Rectangle
Inquiry Now

Introduction:

General Specification



ItemNominal DimensionUnit
  Dot Matrix240 x RGB x 320Dots
  Module Size ( W×H×T )42.72 x 60.26 x 2.45mm.
  Active Area ( W×H )36.72 x 48.96mm.
  Pixel arrangementRGB Stripemm.
  Dot Pitch ( W×H )0.153 x 0.153mm.
  Color depth262K(MAX)colors
  Interface8 bit MCU
  Driving IC PackageCOG
  Operating temperature-20 ~70ºC
  Storage temperature-30~80ºC
  LCD Typea-Si TFT
  LCD ModeNormal Black
  Backlight TypeLED x 4PCS

Interface Definition



Pin NoPin SymbolLevelDescription
1GND0VGround
2TEH/LTearing effect signal output
3DB7H/LData bus
4DB6H/LData bus
5DB5H/LData bus
6DB4H/LData bus
7DB3H/LData bus
8DB2H/LData bus
9DB1H/LData bus
10DB0H/LData bus
11/RDH/LRead signal
12/WRH/LWrite signal
13RSH/LRegister select signal. 0:index register; 1: data register
14/CSH/LChip Select signal
15/RESETH/LChip reset signal
16GND0VGround
17VCI2.4-3.3VPower supply
18VCI2.4-3.3VPower supply
19IOVCC1.65-3.3VPower supply for logic
20LEDALED light, anode
21LEDALED light, anode
22LEDKLED light, cathode.
23LEDKLED light, cathode.
24GND0VGround
25GND0VGround
