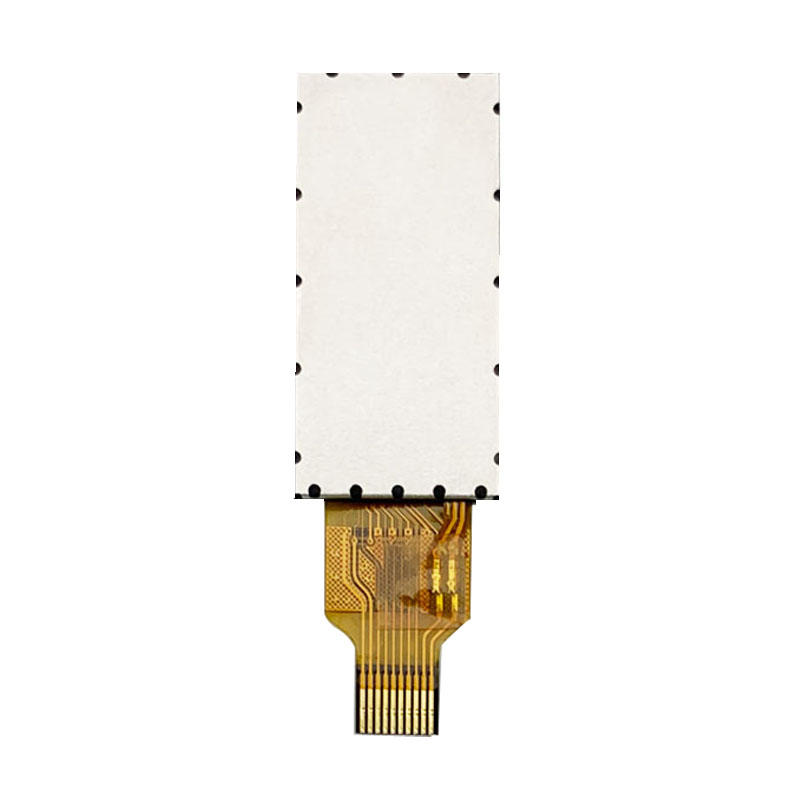

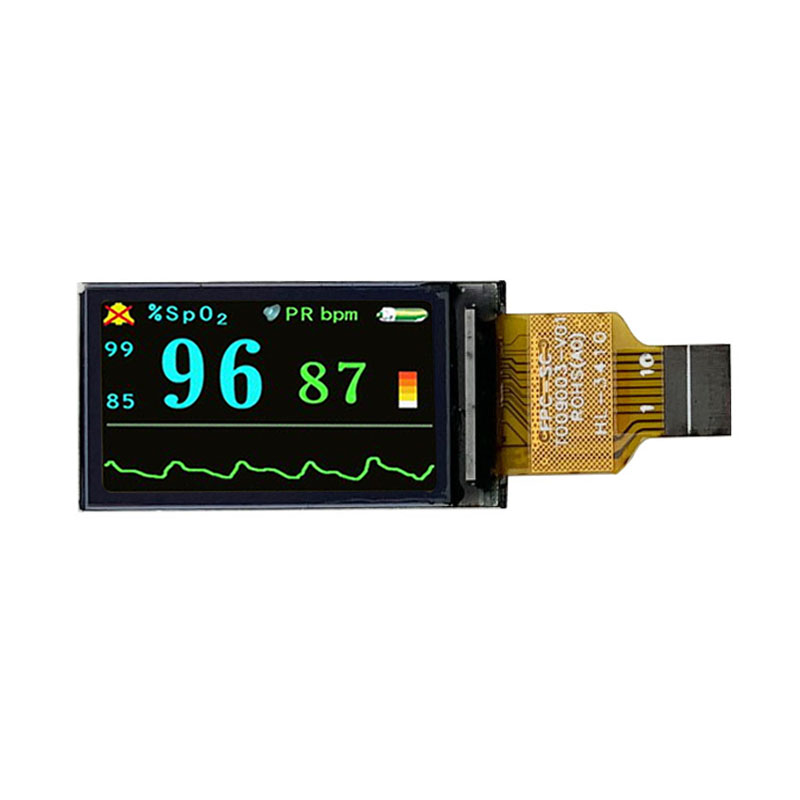

0.96” IPS TFT LCD Display With 80*160, ST7735S, SPI

SCT009003-V01 is a 0.96″ mini TFT LCD display, with 80*160 resolution. This module is built in with ST7735S IC. It is a portrait mode LCD module.

  • Type: TFT
  • Mode: IPS
  • Product No: SCT009003-V01
  • Size: 0.96''
  • Resolution: 80*160
  • Outline Dimension: 27.95*13.54*1.85
  • Active Area: 21.7*10.8
  • Interface: SPI
  • IC: ST7735S
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: IPS
  • Pin No: 10
  • Shape: Rectangle
Inquiry Now

Introduction:

General Specification



ItemNominal DimensionUnit
 Dot Matrix80 x RGB x 160Dots
 Module Size ( W×H×T )13.54 x 27.95 x 1.5mm.
 Active Area ( W×H )10.80 x 21.70mm.
 Pixel arrangementRGB Stripemm.
 Dot Pitch ( W×H )0.135 x 0.1356mm.
 Color depth262K(MAX)colors
 InterfaceSPI
 Driving ICST7735S
 Operating temperature-20 ~70ºC
 Storage temperature-30~80ºC
 LCD Typea-Si TFT
 LCD ModeNormal Black
 Backlight TypeLED x 1PCS



Interface Definition



Pin NoPin SymbolTypeDescription
1LED+PLED light, anode
2LED-PLED light, cathode.
3D/CIIn 4-line SPI:
-D/CX=’1′: Display Data or Parameter.
-D/CX=’0′: Command Data.
In 3-line SPI: no used
If not used, please fix this pin at GND level
4SDAI/OSerial data input/output signal
5CSIChip Select
6RESETIChip reset signal
7SCLISerial clock input signal



–   SPI4W=’0′, 3-line SPI Enable.
8SPI4WI–   SPI4W=’1′, 4-line SPI Enable.
9VCCPPower supply
10GNDPGround
