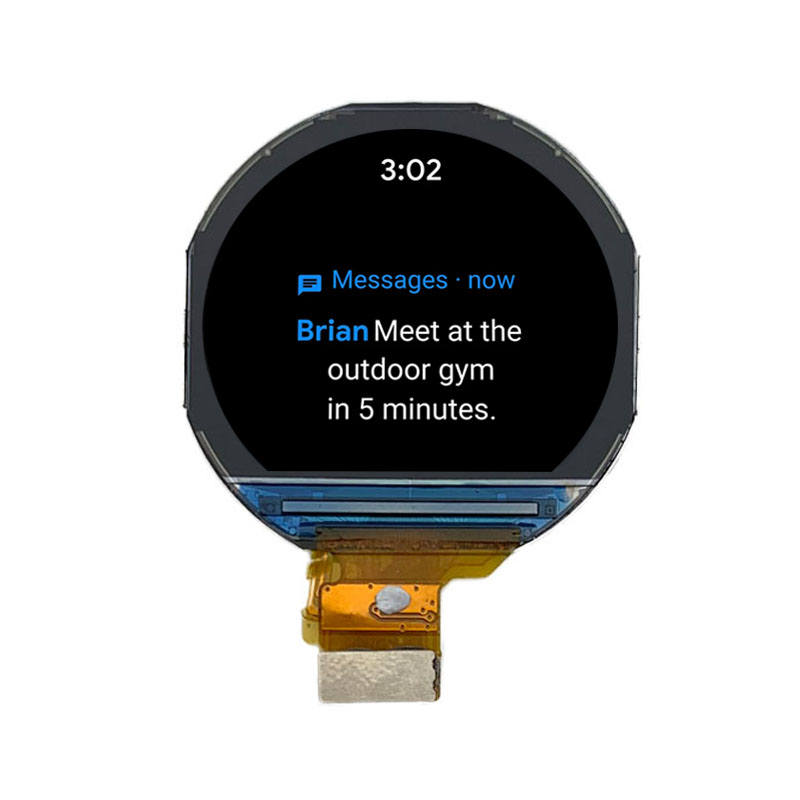

General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 240 x RGB x 198 | Dots |
| Module Size ( W×H×T ) | 27.40(W) X 27.00(H) X 1.46(T) | mm. |
| Active Area ( W×H ) | 24.408(H) X 20.137(V) | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.135 x 0.1356 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 1 Lane 4SPI /8080 mode | – |
| Driving IC | GC9307 | – |
| Operating temperature | -10 ~60 | ºC |
| Storage temperature | -20~70 | ºC |
| LCD Type | a-Si TFT | – |
| LCD Mode | IPS/ Transmissive / Normal Black | – |
| Backlight Type | LED x 1 | PCS |
Interface Definition
| Pin No. | Symbol | I/O | Description |
| 1 | VSS | P | GND |
| 2 | IM1\IM2 | I | IM1/IM2=0,8080 8bit mode
IM1/IM2=1,4SPI 1lane mode |
| 3 | RES | I | Hardware Reset input pin |
| 4 | NC | – | Open |
| 5 | CS | I | Chip select input pins |
| 6 | DCX/SCL | I | SPI mode: Serial clock input
8080 mode: data and command select pin |
| 7 | NC | – | open |
| 8 | VDDIO | P | Power source for I/O circuit |
| 9 | VDD | P | Power source for system circuit |
| 10 | NC | – | open |
| 11 | LEDK | P | Backlight – |
| 12 | LEDA | P | Backlight + |
| 13 | TE | O | Tearing effect signal is used to synchronize MCU to frame memory |
| 14 | D7 |
I\O |
Parallel interface data bus |
| 15 | D6 | ||
| 16 | D5 | ||
| 17 | D4 | ||
| 18 | D3 | ||
| 19 | D2 | ||
| 20 |
