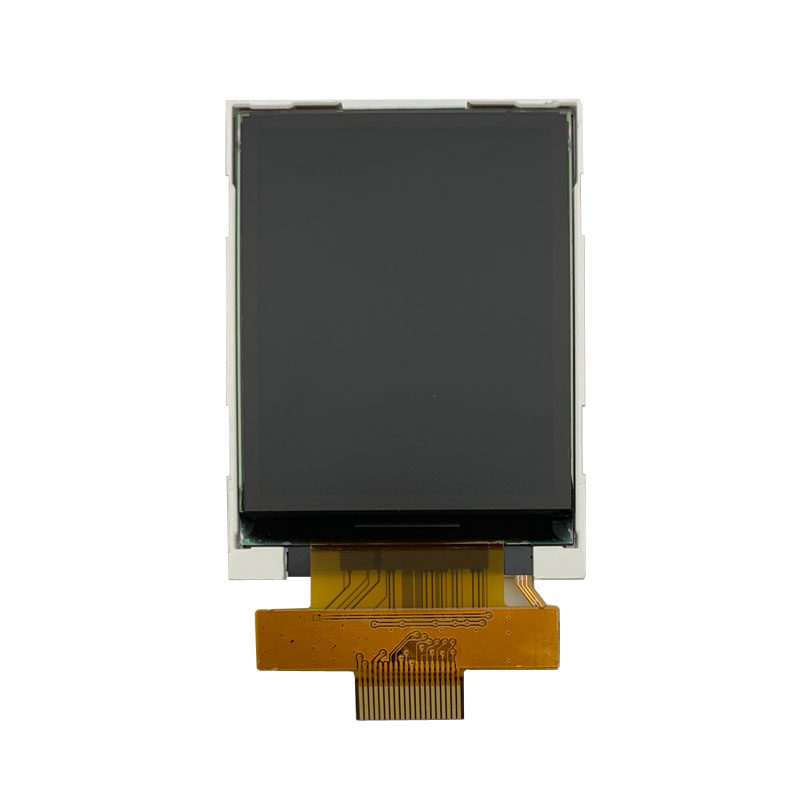

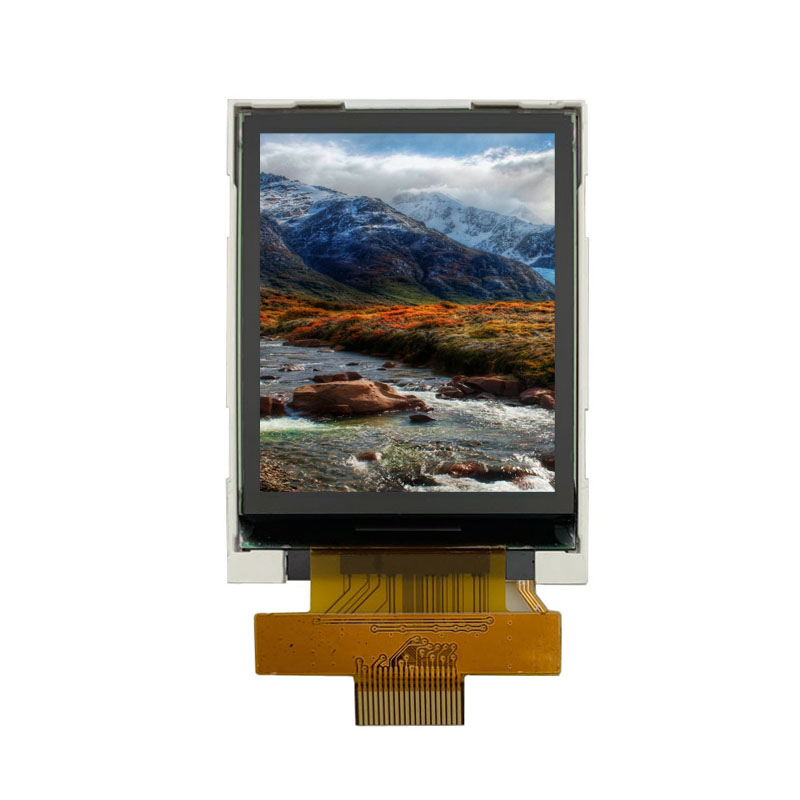

1.8'' TFT Color LCD Module ST7735S, MCU with 128*160

SCT018001-V02 is a color TFT 128×160 LCD display module, diagonal size 1.77 inch. This module is built in with ST7735S-G4 IC; it supports 8bit MCU interface. And view direction is 12 o'clock.

  • Type: TFT
  • Mode: TN
  • Product No: SCT018001-V02
  • Size: 1.8''
  • Resolution: 128*160
  • Outline Dimension: 34.00*45.83*2.60
  • Active Area: 28.032*35.040
  • Interface: 8bit MCU
  • IC: ST7735S
  • Brightness: 350cd/m2
  • Touch Screen: No
  • View Direction: 12
  • Pin No: 20
  • Shape: Rectangle
Inquiry Now


General Specification


ItemNominal DimensionUnit
Dot Matrix128 x RGB x 160Dots
Module Size ( W×H×T )34.0 x 45.83 x 2.75(max)mm.
Active Area ( W×H )28.032 x 35.040mm.
Pixel arrangementRGB Stripemm.
Dot Pitch ( W×H )0.219 x 0.219mm.
Color depth262K(MAX)colors
Interface8 bit MCU
Driving IC PackageCOG
Operating temperature-20 ~70ºC
Storage temperature-30~80ºC
LCD Typea-Si TFT
LCD ModeTN/Normal White
Backlight TypeLED x 2PCS

Interface Definition


Pin NoPin SymbolTypeDescription
1LED-LED light, cathode.
2LED+LED light, anode
4VDD2.3-3.6VPower supply


7/CSH/LChip Select signal
8/RESETH/LChip reset signal
9RSH/LRegister select signal. 0:index register; 1: data register
10/WRH/LWrite signal
11/RDH/LRead signal
12DB7H/Ldata bus 7
13DB6H/Ldata bus 6
14DB5H/Ldata bus 5
15DB4H/Ldata bus 4
16DB3H/Ldata bus 3
17DB2H/Ldata bus 2
18DB1H/Ldata bus 1
19DB0H/Ldata bus 0
