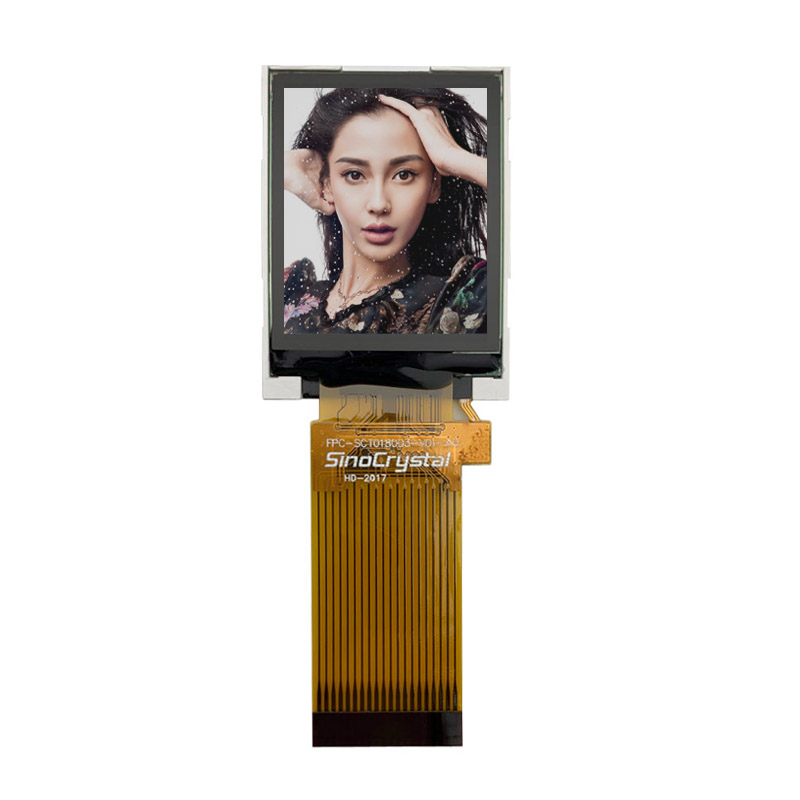

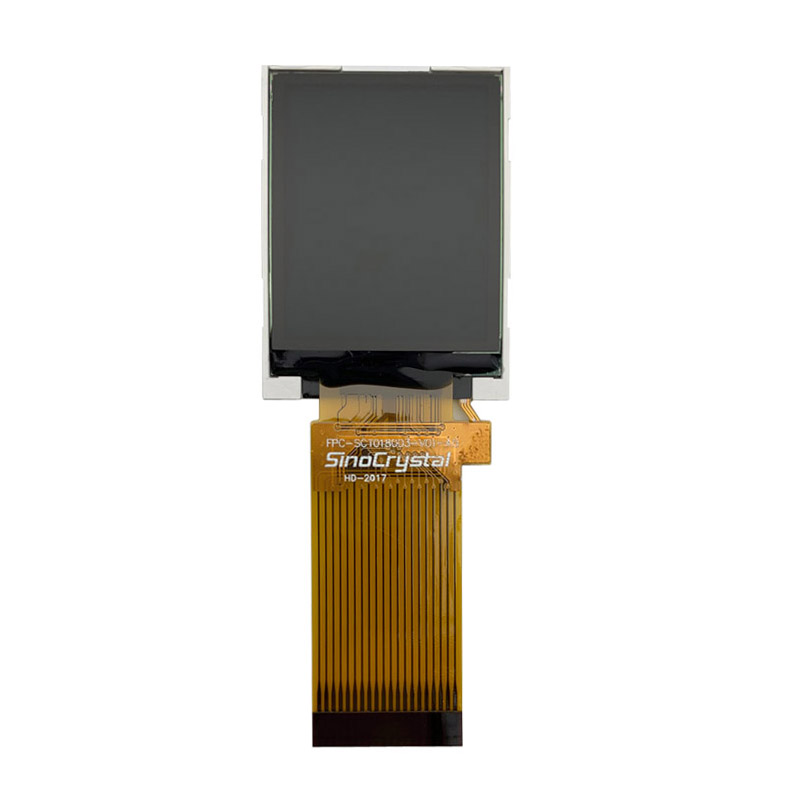

1.77'' Color LCD Display With 128*160, ST7735, MCU

SCT018003-V01 is a 1.77'' TFT LCD Display with 128×160 resolution, it built in with ST7735S IC, and it supports 8bit MCU interface, 20 PIN, 12 o'clock View direction.

  • Type: TFT
  • Mode: TN
  • Product No: SCT018003-V01
  • Size: 1.8''
  • Resolution: 128*160
  • Outline Dimension: 34.00*45.83*2.60
  • Active Area: 28.032*35.040
  • Interface: 8bit MCU
  • IC: ST7735S
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: 12
  • Pin No: 20
  • Shape: Rectangle
Inquiry Now

Introduction:

General Specification



ItemNominal DimensionUnit
 Dot Matrix128 x RGB x 160Dots
 Module Size ( W×H×T )34.0 x 45.83 x 2.75(max)mm.
 Active Area ( W×H )28.032 x 35.040mm.
 Pixel arrangementRGB Stripemm.
 Dot Pitch ( W×H )0.219 x 0.219mm.
 Color depth262K(MAX)colors
 Interface8 bit MCU
 Driving IC PackageCOG
 Operating temperature-20 ~70ºC
 Storage temperature-30~80ºC
 LCD Typea-Si TFT
 LCD ModeTN/Normal White
 Backlight TypeLED x 2PCS



Interface Definition



Pin NoPin SymbolTypeDescription
1LED-LED light, cathode.
2LED+LED light, anode
3GND0VGround
4VDD2.3-3.6VPower supply
5TETearing effect output
6NCDummy
7/CSH/LChip Select signal
8/RESETH/LChip reset signal
9RSH/LRegister select signal. 0:index register; 1: data register
10/WRH/LWrite signal
11/RDH/LRead signal
12DB7H/Ldata bus 7
13DB6H/Ldata bus 6
14DB5H/Ldata bus 5
15DB4H/Ldata bus 4
16DB3H/Ldata bus 3
17DB2H/Ldata bus 2
18DB1H/Ldata bus 1
19DB0H/Ldata bus 0
20GND0VGround
