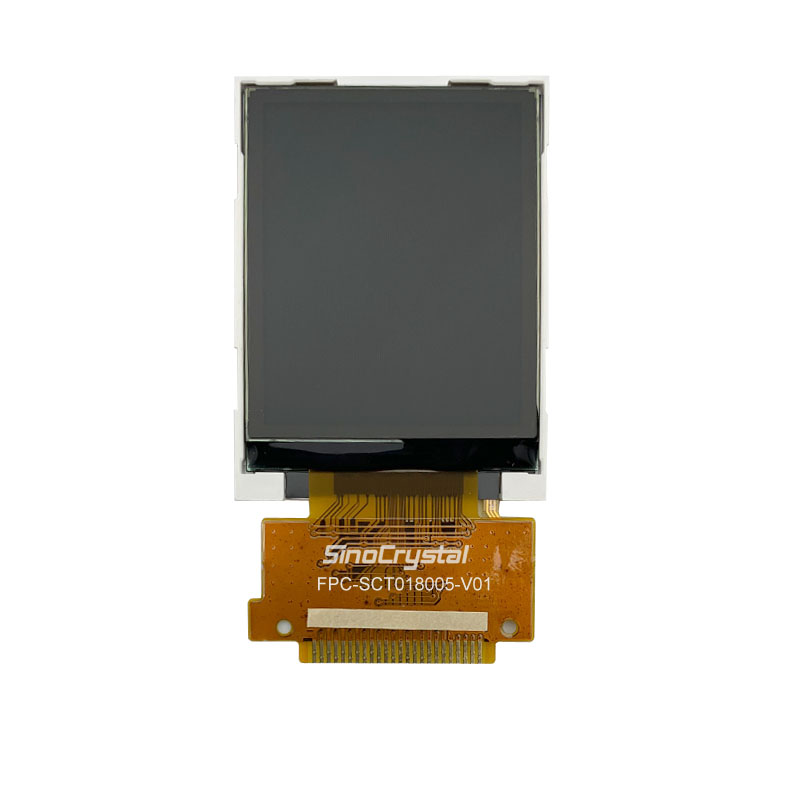

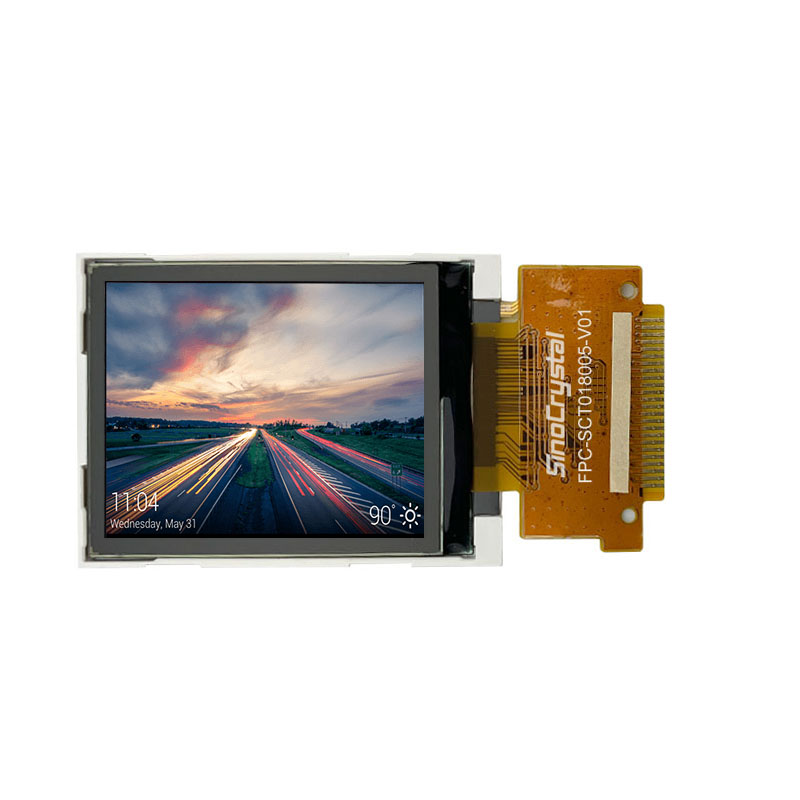

1.77'' TFT COG LCD Display With 8bit MCU, ILI9163V, 128*160

SCT018005-V01 is a 1.77'' TFT LCD Display with 128×160 resolution, it built in with ILI9163V IC, and it supports 8bit MCU interface, 24 PIN, 12 o'clock View direction.

  • Type: TFT
  • Mode: TN
  • Product No: SCT018005-V01
  • Size: 1.8'
  • Resolution: 128*160
  • Outline Dimension: 34.00*45.83*2.75
  • Active Area: 28.032*35.040
  • Interface: 8bit MCU
  • IC: ILI9163V
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: 12
  • Pin No: 24
  • Shape: Rectangle
Inquiry Now

Introduction:

General Specification



ItemNominal DimensionUnit
  Dot Matrix128 x RGB x 160Dots
  Module Size ( W×H×T )34.0 x 45.83 x 2.75mm.
  Active Area ( W×H )28.032 x 35.040mm.
  Pixel arrangementRGB Stripemm.
  Dot Pitch ( W×H )0.219 x 0.219mm.
  Color depth262K(MAX)colors
  Interface8 bit MCU
  Driving IC PackageCOG
  Operating temperature-20 ~70ºC
  Storage temperature-30~80ºC
  LCD Typea-Si TFT
  LCD ModeTN/Normal White
  Backlight TypeLED x 2PCS



Interface Definition



Pin NoPin SymbolTypeDescription
1GND0VGround
2IOVDD1.8-3.3VPower supply for logic
3VDD2.5-3.6VPower supply for digital
4/CSH/LChip Select signal
5/RESETH/LChip reset signal
6RSH/LRegister select signal. 0:index register; 1: data register
7/WRH/LWrite signal
8/RDH/LRead signal
9DB0H/Ldata bus 0
10DB1H/Ldata bus 1
11DB2H/Ldata bus 2
12DB3H/Ldata bus 3
13DB4H/Ldata bus 4
14DB5H/Ldata bus 5
15DB6H/Ldata bus 6
16DB7H/Ldata bus 7
17LEDALED light, anode
18LEDK1LED light, cathode.
19LEDK1LED light, cathode.
20GND0VGround
21NCDummy
22NCDummy
23NCDummy
24NCDummy
