1.8'' TFT 128*160 ST7735S SPI With 10 Pin

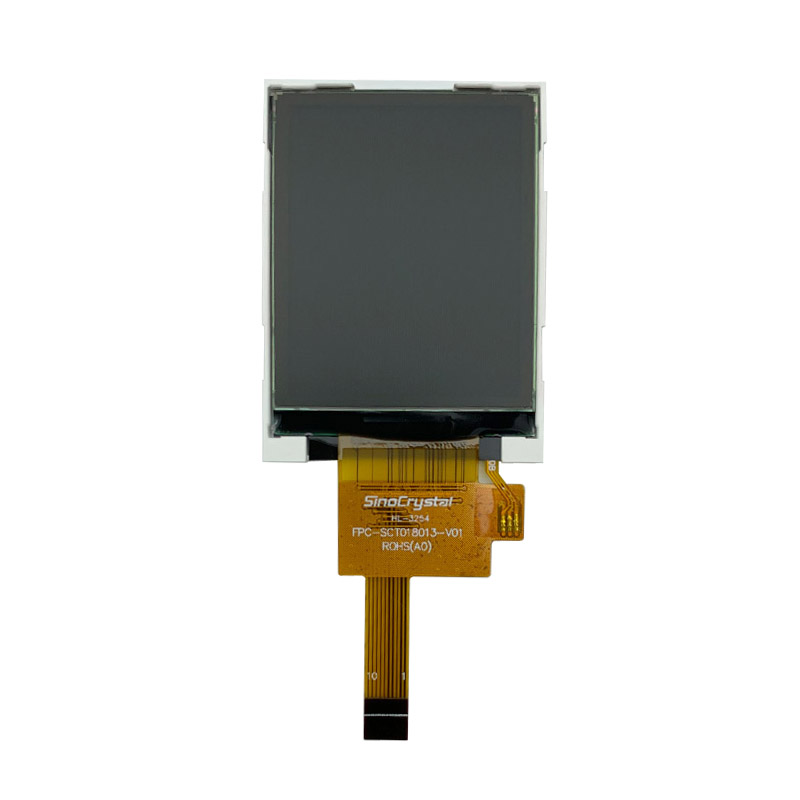

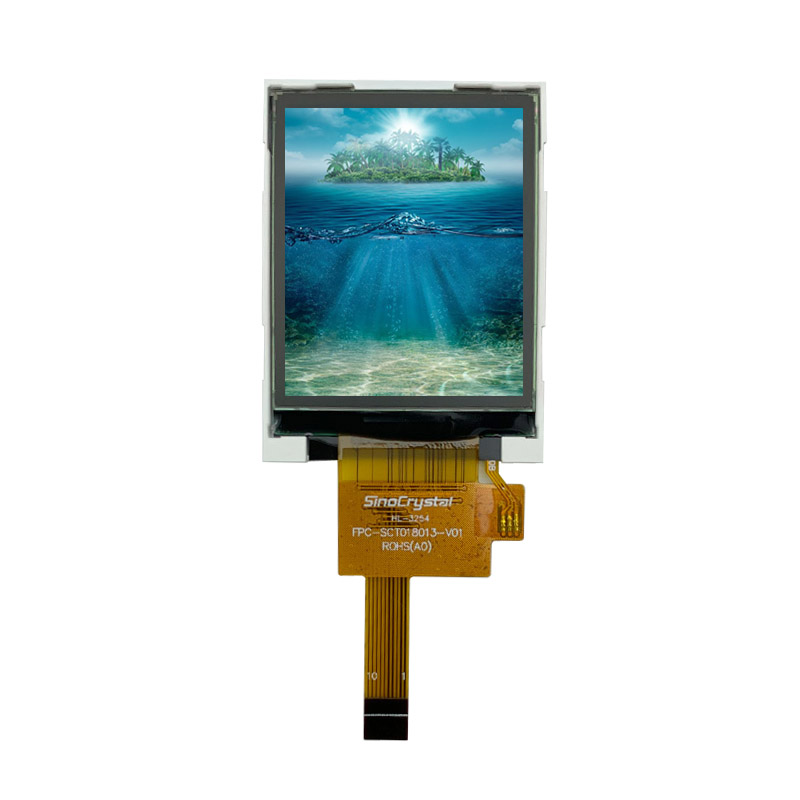

SCT018013-V01 is a 1.77'' TFT LCD Display with 128×160 resolution, it built in with ST7735S IC, and it supports SPI interface, 10 PIN, 12 o'clock View direction.

  • Type: TFT
  • Mode: TN
  • Product No: SCT018013-V01
  • Size: 1.8''
  • Resolution: 128*160
  • Outline Dimension: 34.00*45.83*2.60
  • Active Area: 28.032*35.040
  • Interface: SPI
  • IC: ST7735S
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: 12
  • Pin No: 10
  • Shape: Rectangle
Inquiry Now

Introduction:

General Specification



ItemNominal DimensionUnit
Dot Matrix128 x RGB x 160Dots
Module Size ( W×H×T )34.0 x 45.83 x 2.60mm.
Active Area ( W×H )28.032 x 35.040mm.
Pixel arrangementRGB Stripemm.
Dot Pitch ( W×H )0.219 x 0.219mm.
Color depth262K(MAX)colors
InterfaceSPI
Driving ICST7735S
Operating temperature-20 ~70ºC
Storage temperature-30~80ºC
LCD Typea-Si TFT
LCD ModeTN / Normal White
Backlight TypeLED x 2PCS

Interface Definition



Pin NoPin SymbolTypeDescription
1LED+PLED light, anode
2LED-PLED light, cathode.



–  SPI4W=’0′, 3-line SPI Enable.
3SPI4WI–  SPI4W=’1′, 4-line SPI Enable.
4VCCPPower supply
5GNDPGround
6CSIChip Select
7RESETIChip reset signal
8SDAI/OSerial data input/output signal
9SCLISerial clock input signal
10D/CIIn 4-line SPI:
-D/CX=’1′: Display Data or Parameter.
-D/CX=’0′: Command Data. In 3-line SPI: no used
If not used, please fix this pin at GND level
