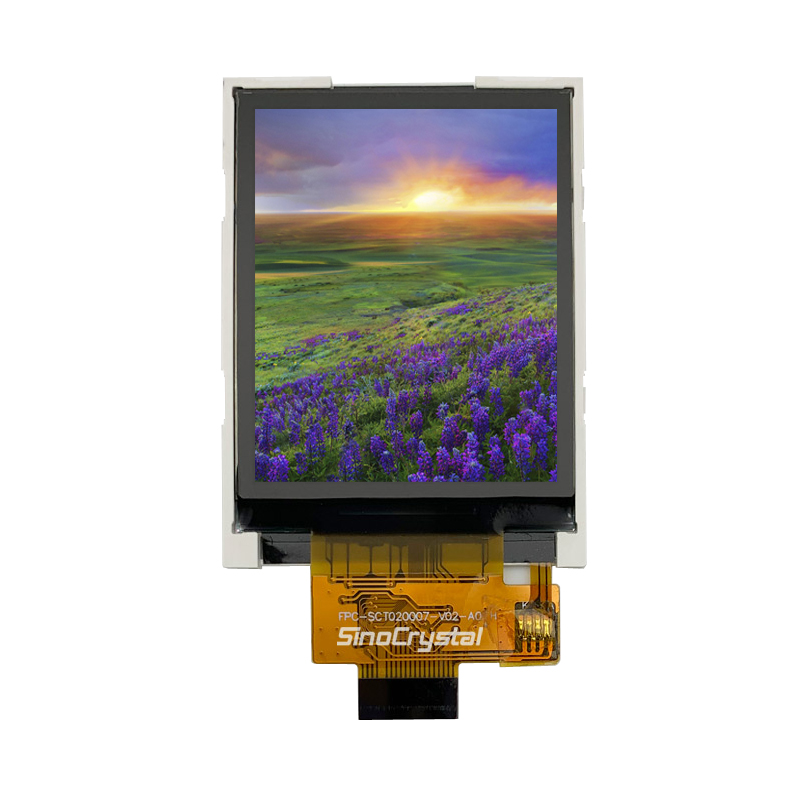

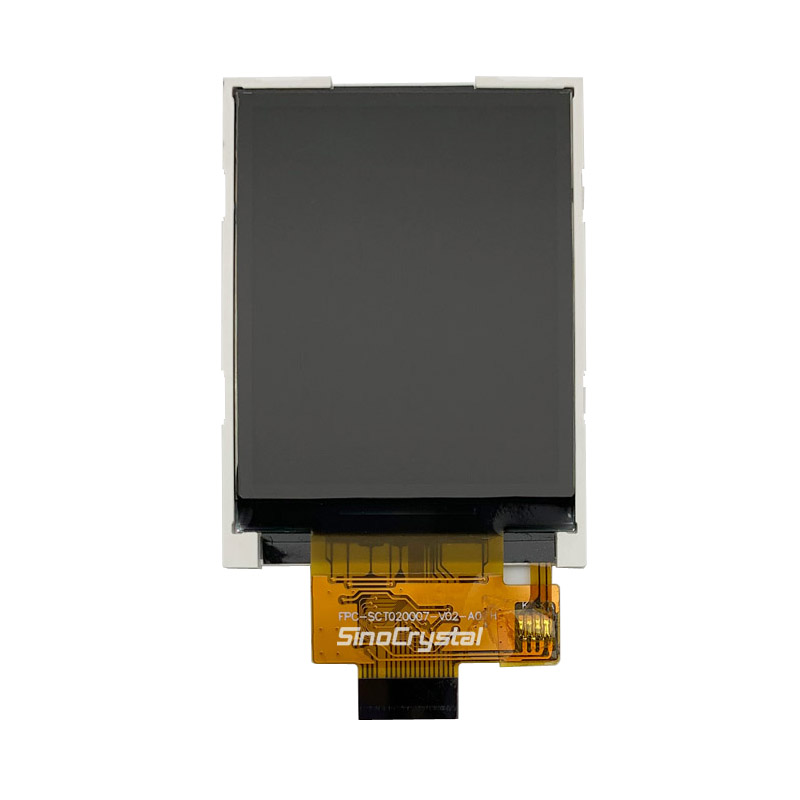

2.0'' TFT 176*220 LCD Display 20 Pin With ST7775R Controller, MCU

SCT020007-V02 is a 2.0'' TFT LCD Display with 176*220 resolution, it built in with ST7735R IC, and supports 8bit MCU interface, 20 PIN.

  • Type: TFT
  • Mode: TN
  • Product No: SCT020007-V02
  • Size: 2.0''
  • Resolution: 176*220
  • Outline Dimension: 37.68*51.30*2.23
  • Active Area: 35.30*46.45
  • Interface: 8bit MCU
  • IC: ST7775R
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: 6
  • Pin No: 20
  • Shape: Rectangle
Inquiry Now

Introduction:

General Specification



ItemNominal DimensionUnit
  Dot Matrix176 x RGB x 220Dots
  Module Size ( W×H×T )37.68 x 51.30 x 2.25mm.
  Active Area ( W×H )31.68 x 39.60mm.
  Pixel arrangementRGB Stripemm.
  Dot Pitch ( W×H )0.18 x 0.18mm.
  Color depth262K(MAX)colors
  Interface8 bit MCU
  Driving IC PackageCOG
  Operating temperature-20 ~70ºC
  Storage temperature-30~80ºC
  LCD Typea-Si TFT
  LCD ModeTN/Normal White
  Backlight TypeLED x 3PCS

 Interface Definition



Pin NoPin SymbolTypeDescription
1GND0VGround
2RESETH/LChip reset signal
3RSH/LRegister select signal. 0:index register; 1: data register
4WRH/LWrite signal
5RDH/LRead signal
6-13DB0-DB7H/LData bus
14CSH/LChip Select signal
15IOVCC1.65-3.3VPower supply for logic
16NC
17VDD2.5-3.3VPower supply
18LEDALED light, anode
19LEDKLED light, cathode.
20GND0VGround
